8m3 Customized Harvester Pond Weed Killer With Large Capacity

Ask Lasest Price
Brand Name :	yongsheng
Model Number :	YS-wcb8
Price :	23500usd/piece
Payment Terms :	L/C,T/T
Supply Ability :	100piece/year
Delivery Time :	30work days

Add to Cart

Product Details
Company Profile

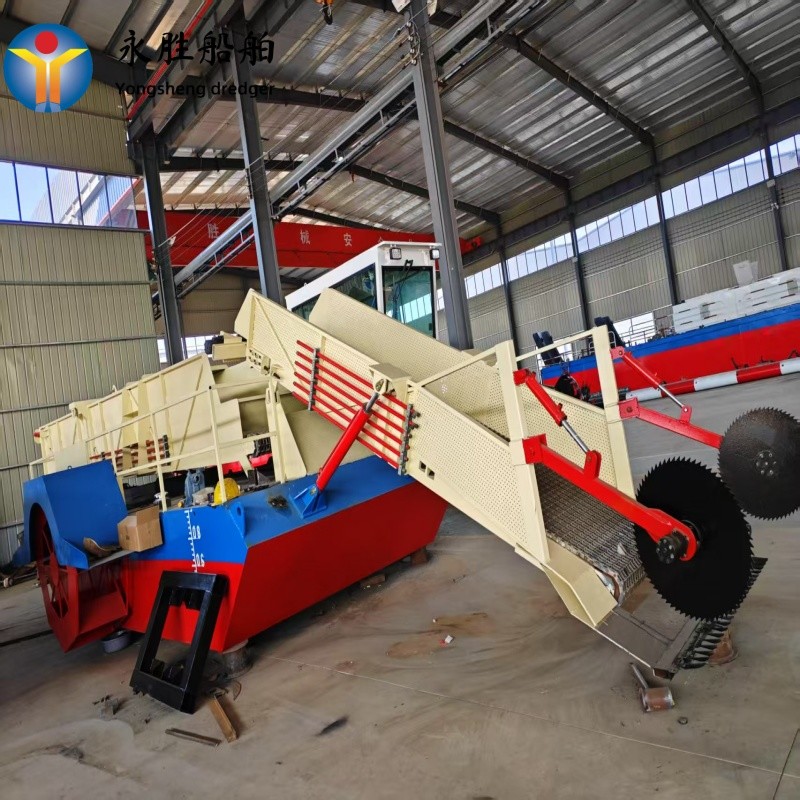

8m3 Customized Harvester Pond Weed Killer With Large Capacity

Customized Aquatic Plant Harvester With Large Capacity

Automatic cleaning ship is currently the most widely used,
according to the different plants on the water,

can be used for cleaning ship supporting different parts, such as
saw blade, bottom shear, vertical shear,

wheel knife, etc., according to the water area is different, the
design meets the requirements of the hull

size, some complex waters can also be used with several cleaning
ships.

The role of each component:
1Front collection arm
Including the harvesting system and transmission system of the
mowing boat. The cutting teeth on both sides and the bottom cut off
the waterweed and transmit it to the rear storage bin through the
stainless steel chain moving in the middle.
2Wheel
The traveling wheel of the mowing boat adopts the design of paddle
wheel, which is light, convenient and not easy to entangle with
waterweed.
3Storage space
The rear storage bin is a temporary storage bin for harvested
waterweed, which has the characteristics of large capacity and easy
loading and unloading.
4Hull
The hull is made of high-quality materials, including three parts:
bottom plate, side plate, and deck. Excellent texture, strong and
durable.
5Operation room
The control room is the main control console of the entire mower,
which can control the movement, rotation, rising and sinking of the
collection arm, forward and reverse rotation of the collection
chain, etc. The control room adopts a transparent window design,
which provides a wide field of view and facilitates operation.

Part Of Specifications For Reference:
Model	YSWCB8	YSCSD10
Storage Size(m3)	8	10
Power(KW)	60	88
Full Load Draft(mm)	0.8	0.85
Moving Way	Paddle wheel	Paddle wheel
Cruising Ability(h)	16	16
Collection Width(m)	1.6	1.8
Collection Depth(m)	1.2	1.2

8m3 Customized Harvester Pond Weed Killer With Large Capacity

advantage:

1. Save labor: the work efficiency of one machine is equivalent to the work efficiency of 30 people.

2. Convenient transportation: On the premise of ensuring the rigidity of the lawn mower, the weight is

reduced as much as possible, so that the turning pond can be easily lifted manually.

3. Unique design: reduce the distance between the scissors part and the conveying part to prevent the cut

grass from falling into the pond.

4. Convenient disassembly: The scissors part, the conveying part, and the foam hull can all be disassembled

and repaired conveniently, and the conveying spindle is not welded.

5. Reduce water ingress and prolong service life: The steel pipe of the conveying frame is fully enclosed, and

water cannot enter the steel pipe, which can reduce rust and extend the service life.

6. Easy to use: Insert a battery pack and press the switch to use it easily.

After Sales Service:
1. Signing a long-term after-service agreement with customers.
2. Rational and practical design according to clients' project needs and requirements.
3. Engineers will be sent for installation, testing and commissioning of new machine.
4. Operation service & maintenance guidance (Training of new
operators).
5. Troubleshooting & diagnosis.
6. Replacement suggestions & spare parts with competitive price.
7. Life time after sales service for all customers
