Product Description:
he dredge pump is driven by the main diesel engine through the
reducing gear box.
The alternator, which driven by the auxiliary diesel engine,
supplies electricity for power and lighting of the whole dredger.
Generator supplies electricity for lighting and emergency using
when dredger doesn’t working.
Cutter head is driven by hydraulic motor; cutter bearing has
lubrication seal-in units.
The dredger is moved by alternate swing of the spuds. The spuds are
lifted by the hydraulic cylinder.
The shifting winches, cutter ladder and lifting winch are driven by
the hydraulic motor.
The hydraulic oil pump is driven by the auxiliary diesel engine.
Features:
- Product Name: Small dredger ship for sand dredging
- Testing: Empty Running Before Ex-factory
- Side Plate Thickness: 5 Mm
- Discharge diameter: 8inch
- Power Type: Diesel
- Total Fuel Consumption: According To Engine Brand

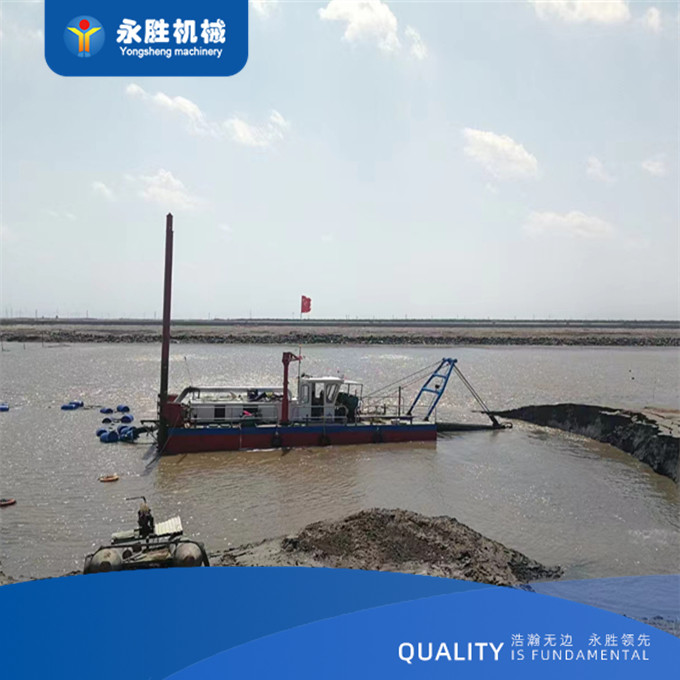

This cutter suction dredger is the ultimate dredging vessel for
mud, equipped with a powerful cutter head dredger to easily break
through the toughest materials. It's perfect for any large-scale
dredging project that requires heavy-duty equipment.
Experience the power and efficiency of the Cutter suction dredge
today and get your project done right!
Technical specifications
| YSCSD100 sand capacity 50 cbm/h Sand mining dredge |
| Technical specifications |
| Water flow | 700 m3/h |
| Solid capacity | 100 cbm/h |
| Max. dredging depth 45° | 7 m |
| Discharge distance | 1100 m |
| LOA | 16.5m |
| Dredger after assembly | 16.5*3.5*1.25 m Length* width* depth |
| Dredger structure | Dismantle type and can be assembly in working site |
| Average draught | 0.8 m |
| Diameter discharge pipe | 150mm/6 inch |
| Main Engine | 205 kw WeiChai engine |
| Rotate speed | 1500 r/min |
| Auxiliary engine power | 55 kw WeiChai engine |
| Generator | 16 kw |
| Hydraulic cutter power | 22 kw |
| Total power | 276 kw |
Applications:
One of the primary applications of the cutter suction dredger is in
the construction of ports and harbors.
The dredger is used to remove sand and other sediments from the
waterways,
creating a clear path for ships and boats to enter and dock. The
dredger is also used in the maintenance of these facilities,
ensuring that they are always in optimal condition.
Another major application of the cutter suction dredger is in the
mining industry. The dredger is used to extract sand and other
minerals from the seabed, which are then processed and used in
various industries. The powerful sand pump of the cutter suction
dredger makes it perfect for this application, as it can extract
large quantities of sand and other materials in a short period.
The cutter suction dredger is also used in environmental
remediation projects. It can be used to remove pollutants and other
contaminants from water bodies, helping to restore the natural
ecosystem. In such scenarios, the dredger is equipped with special
equipment such as a spud carriage and anchor boom, which increase
its efficiency and accuracy.
Finally, the cutter suction dredger is also suitable for land
reclamation projects. The dredger can be used to remove sand and
other sediments from the seabed and deposit them on the land,
creating new areas for development. The cutter head dredger is,
therefore, suitable for use in construction projects such as
airports, industrial parks, and residential areas.
In conclusion, the cutter suction dredger is a versatile sand
dredging machine suitable for various applications. Its powerful
sand pump, maximum dredging depth, and optional equipment such as
the spud carriage and anchor boom make it an ideal choice for
hydraulic cutter suction dredger projects in the mining,
construction, and environmental remediation industries.
Support and Services:
The cutter suction dredger product technical support and services
include:
- Installation and commissioning
- Training for operators and maintenance personnel
- Remote technical support
- On-site technical support and troubleshooting
- Regular maintenance and inspection services
- Repair and overhaul services
- Spare parts supply
Packing and Shipping:Product Packaging:
- The cutter suction dredger will be securely packed in a wooden
crate to prevent damage during shipping.
- All parts and accessories will be neatly placed within the crate
and properly labeled for easy identification.
Shipping:
- The cutter suction dredger will be shipped via a reliable freight
carrier.
- The shipping cost will be calculated based on the destination and
weight of the product.
- The customer will be provided with a tracking number to monitor the
status of their shipment.
- Delivery times may vary depending on the destination and any
customs clearance procedures.
