    High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine

    Ask Lasest Price
    Brand Name : yongsheng dredger
    Model Number : YSCSD600
    Certification : CCS/ISO9001
    Price : 530000 to 820000 USD dollars/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 8 sets/year
    Delivery Time : 55days
    • Product Details
    • Company Profile

    High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine

    High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine


    Introduction for cutter suction dredger from Yongsheng Dredger


    CCS certificate for Cutter suction dredger from Yongsheng dredger is available

    The dredger can work for land filling, sand dredging, port deepening, channel dredging and land reclamation.

    The design, construction, quality inspection of our cutter suction dredger is based on the standards

    and regulations of CCS. The hull, machinery equipment and other spares are at the requirements of CCS as well.

    The hull is square, cross keel, which is full welding steel structure, and authorized by CCS.


    The dredgers we are producing are diesel engine driven, self-propelled or non self-propelled,

    portable hydraulic cutter suction dredgers. The hull uses dismantle and box-like structure, dismantle

    for shipment and assembly at working site.



    Dredger working condition


    The Maximum Temperature 500C

    The Minimum Temperature -100C

    The Maximum Temperature of engine room 500C

    The Maximum Temperature of The River (Sea) Water 300C

    The Relative Humidity ≤80%


    Arrangement of the complete dredger


    Main equipment on the dredger:

    ——Cutter head and driving system

    —— Frame of cutter head

      ——Frame of ladder A

    ——lifting winch for sand suction pipe

    ——Right and left traversing winches

    ——Operating room

    ——Dredging pump

    ——Deck crane

    ——Gearbox of dredging pump

    ——Main diesel oil engine and auxiliary diesel oil engine

    ——Generator and auxiliary equipment

    ——Position spud and accessories




    Model list for hydraulic cutter suction sand dredger
    ModelInchDiameter pipeWater flowSolid capacityTotal powerDredging depth

    Discharge

    distance

    YSCSD1506 Inch150 mm260 m3/h30 cbm/h102 KW4 m600 m
    YSCSD2008 Inch200 mm600 m3/h80 cbm/h213 KW6 m800 m
    YSCSD25010 inch250 mm1,000 m3/h160 cbm/h367 KW8 m1,100 m
    YSCSD30012 inch300 mm1,500 m3/h240 cbm/h591 KW10 m1,100 m
    YSCSD35014 inch350 mm2,400 m3/h360 cbm/h971 KW12 m1,200 m
    YSCSD40016 Inch400 mm3,000 m3/h500 cbm/h1,057 KW14 m1,400 m
    YSCSD45018 Inch450 mm3,500 m3/h700 cbm/h1,462 KW15 m1,500 m
    YSCSD50020 Inch500 mm3,800 m3/h760 cbm/h1,648 KW15 m1,600m
    YSCSD60024 Inch600 mm6,000 m3/h900 cbm/h2,511 KW15 m1,800 m
    YSCSD65026 Inch650 mm7,000 m3/h1,400 cbm/h3,705 KWMax.18m1,800m

    Packaging and shipment

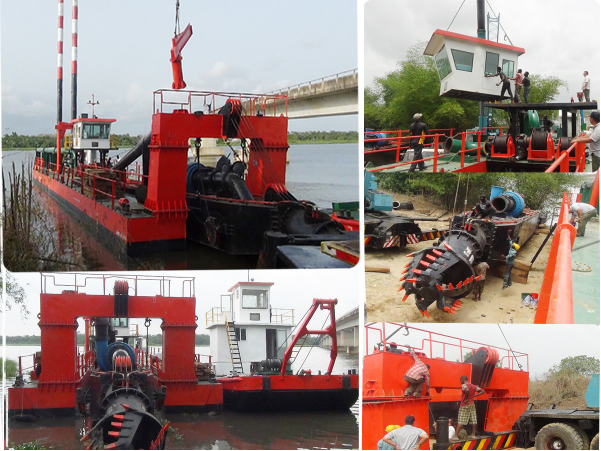

    Cutter suction sand dredger production in workshop


    1. Working video for 26 inch cutter suction dredger in river
    https://www.youtube.com/watch?v=ymHf17z0zn4
    2. 4 sets of new cutter suction dredgers in stock
    https://www.youtube.com/watch?v=b-IuGroZ3f4&t=16s
    3. Assembly and test for 7000 m3/h cutter suction dredger in workshop
    https://youtu.be/fTPXEwE9Kw0
    4. Cutter suction dredger protection and restoration project for mountain, water, forest, lake, and sand integrated
    https://youtu.be/ZnERf6AhVDY
