Product Description:
Dredger working condition
The Maximum Temperature 500C The Minimum Temperature -100C The Maximum Temperature of engine room 500C The Maximum Temperature of The River (Sea) Water 300C The Relative Humidity ≤80%

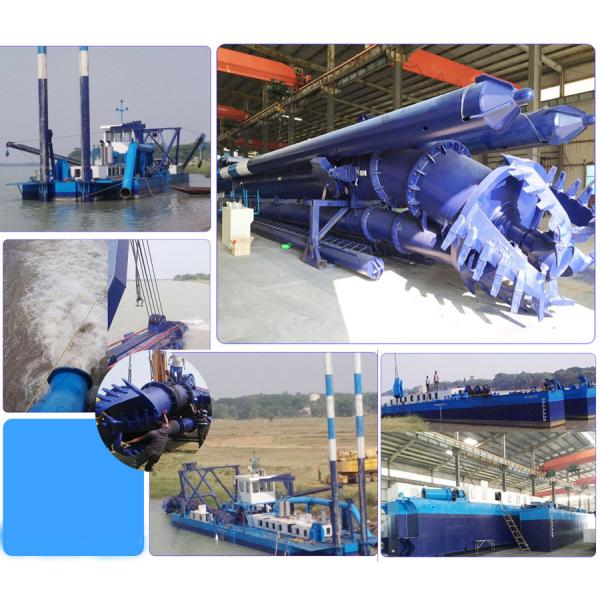

Arrangement of the complete dredger
Main equipment on the dredger: ——Cutter head and driving system —— Frame of cutter head ——Frame of ladder A ——lifting winch for sand suction pipe ——Right and left traversing winches ——Operating room ——Dredging pump ——Deck crane ——Gearbox of dredging pump ——Main diesel oil engine and auxiliary diesel oil engine ——Generator and auxiliary equipment ——Position spud and accessories
|
CCS or Panama certificate for Cutter suction dredger from Yongsheng
dredger is available The dredger can work for land filling, sand dredging, port
deepening, channel dredging and land reclamation. The design, construction, quality inspection of our cutter suction
dredger is based on the standards and regulations of CCS. The hull,
machinery equipment and other spares are at the requirements of CCS
as well. The hull is square, cross keel, which is full welding
steel structure, and authorized by CCS.
The dredgers we are producing are diesel engine driven,
self-propelled or non self-propelled, portable hydraulic cutter
suction dredgers. The hull uses dismantle and box-like structure,
dismantle for shipment and assembly at working site. It can also be equipped with anchoring poles and spud carrier to
increase capacity.
|
Features:
New dredging boat in stock
Mud Dredging Boat Features:
- Product Name: Mud Dredging Boat
- Operation for training: Provided By The Seller
- Length: 50 Meters
- Cutter Head Diameter: 900 Mm
- Capacity: 500 Cubic Meters Per Hour
- Size: Middle Size And Small Size Dredgers
Dredging boat for sale
| YSCSD650 26 inch solid capacity 1400 cbm/h hydraulic cutter suction dredger |
| Technical specifications |
| Water flow | 7,000 m3/h |
| Solid capacity | 1400cbm/h |
| Max. dredging depth 45° | 18 m |
| Discharge distance | 1,800 m |
| LOA | 50 m |
| Dredger after assembly | 50*11*3.2m Length* width* depth |
| Dredger structure | Dismantle type and can be assembly in working site |
| Average draught | 2 m |
| Diameter discharge pipe | 650 mm/26 inch |
| Main Engine | 2,685 kw Cummins engine |
| Rotate speed | 1800 r/min |
| Auxiliary engine power | 970 kw Cummins engine |
| Generator | 50 kw |
| Hydraulic cutter power | 660 kw |
| Total power | 3705 kw |
Applications:
The Yongsheng dredger is an ideal product for dredging mud, sludge,
and debris from rivers, lakes,
and channels. Its anchoring booms allow for stable and secure
positioning, and its length of 43 meters
provides excellent maneuverability and power. The hull material is
made of steel, which makes it
durable and long-lasting.
This mud dredging boat is suitable for various occasions and
scenarios such as:
- Dredging of ports and harbors
- Construction and maintenance of waterways
- Environmental dredging to clean up contaminated water sources
- Land reclamation and soil improvement projects
- Dredging for mining operations
The Yongsheng dredger comes equipped with anchoring booms, which
provide stability and security
during dredging operations. The seller also provides operation
training to ensure that the dredger is used
safely and effectively.
Overall, if you need a reliable, high-quality, and efficient mud
dredging boat, the Yongsheng dredger is an
excellent choice. Its certification, durability, and power make it
a top choice for various dredging applications.
Support and Services:
The Mud Dredging Boat product comes with comprehensive technical
support and services to ensure
its optimal performance and longevity. Our team of experts is
available to provide assistance with any
technical issues that may arise during operation, including
troubleshooting, maintenance, and repair
services. We also offer training sessions for operators to ensure
safe and efficient use of the product.
In addition, we provide spare parts and replacements for any
damaged or worn-out components.
Our goal is to provide our customers with the highest level of
support and services to ensure the
Mud Dredging Boat product operates at its best for years to come.
Packing and Shipping:
Product Packaging:
- 1 Mud Dredging Boat
- 1 Set of Oars
- 1 Anchor and Chain
- 1 User Manual
Shipping Information:
- Shipping Method: Ground Shipping
- Delivery Time: 5-7 Business Days
- Shipping Cost: Free
- Ships From: Our warehouse in [insert location]
FAQ:
Q1: What is the brand name of the Mud Dredging Boat?
A1: The brand name of the Mud Dredging Boat is Yongsheng dredger.
Q2: What is the model number of the Mud Dredging Boat?
A2: The model number of the Mud Dredging Boat is YSCSD500.
Q3: What is the place of origin of the Mud Dredging Boat?
A3: The place of origin of the Mud Dredging Boat is China.
Q4: Does the Mud Dredging Boat have any certifications?
A4: Yes, the Mud Dredging Boat is certified by PANAMA/ISO9001.
Q5: What is the minimum order quantity of the Mud Dredging Boat?
A5: The minimum order quantity of the Mud Dredging Boat is 1.
Q6: What is the price of the Mud Dredging Boat?
A6: The price of the Mud Dredging Boat is custom building.
Q7: How is the Mud Dredging Boat packaged?
A7: The Mud Dredging Boat is packaged in a 40 inch container.
Q8: What is the delivery time for a new Mud Dredging Boat in stock?
A8: The delivery time for a new Mud Dredging Boat in stock is 10
days.
Q9: What are the payment terms for the Mud Dredging Boat?
A9: The payment terms for the Mud Dredging Boat are TT and LC.
Q10: What is the supply ability of the Mud Dredging Boat?
A10: The supply ability of the Mud Dredging Boat is 50 sets per
year.
1. Working video for 26 inch cutter suction dredger in river
https://www.youtube.com/watch?v=ymHf17z0zn4
2. 4 sets of new cutter suction dredgers in stock
https://www.youtube.com/watch?v=b-IuGroZ3f4&t=16s
3. Assembly and test for 7000 m3/h cutter suction dredger in
workshop
https://youtu.be/fTPXEwE9Kw0
4. Cutter suction dredger protection and restoration project for
mountain, water, forest, lake, and sand integrated
https://youtu.be/ZnERf6AhVDY
